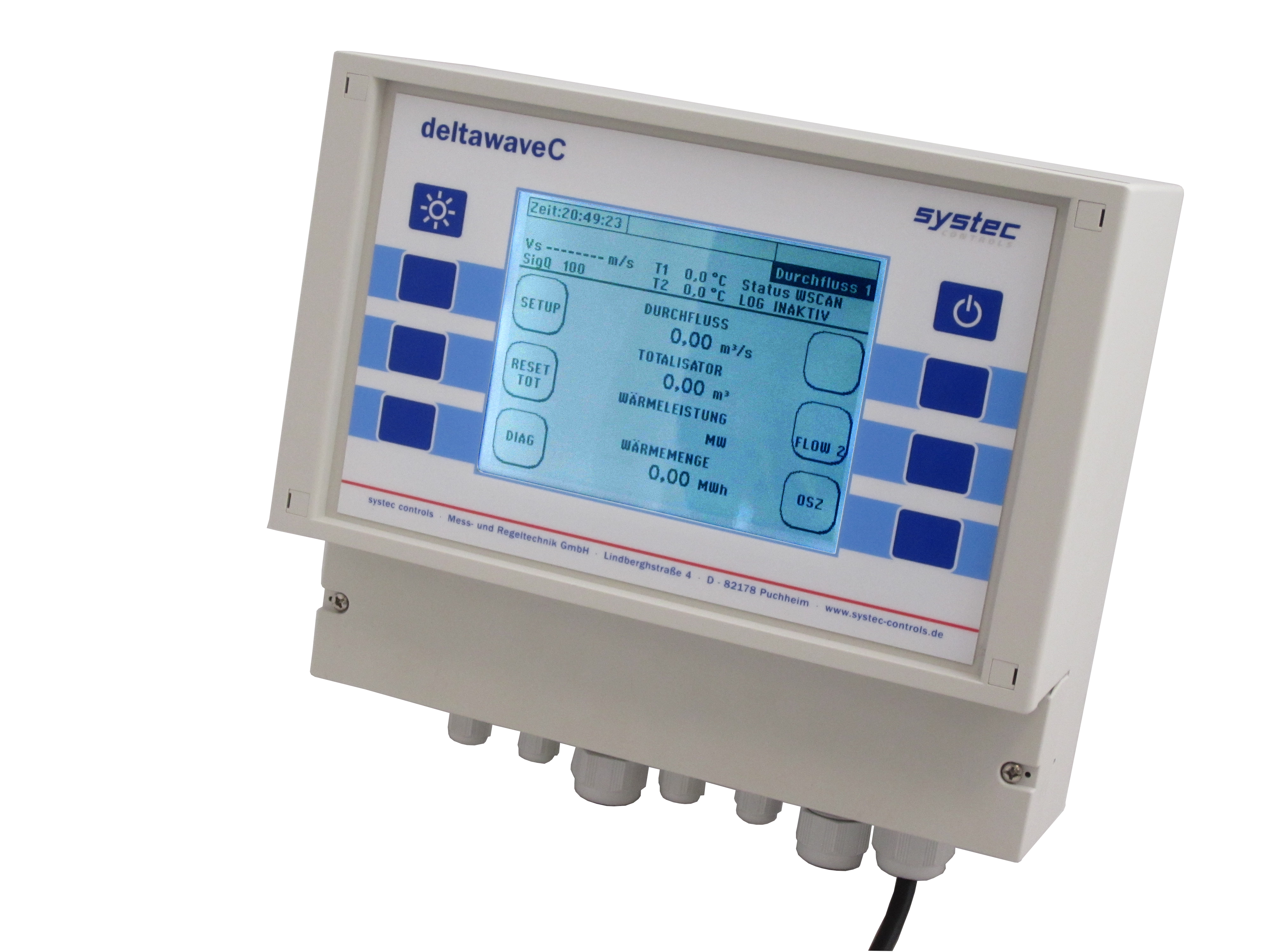

deltawave Evaluating unit
2-Path ultrasonic flow meter for price sensitive application
- 2 ultrasonic paths
- Outflow equations for filled and partially filled pipes and open channels
- Integrated q, h flow equations
- USB / SD / Modbus / M-Bus
- Comfortable setup software included
- Supports all systec ultrasonic transducers and most third-party ultrasonic transducers
- 2 analog and 2 analog outputs, 2 pulse outputs, 1 relay.
- Extensive data logging
- Saving signal scans to SD card
reduced power consumption for solar operation
4- and 8-multi path flow meter for demanding applications
Same specification as 2-channel meter but with 4 or 8 ultrasonic paths.
Information
Product Summaries
| Number of acoustic paths |
2 deltawaveVER2 LEAN 4 / 8 deltawaveVER2 (later upgrade possible) |
| Number of pipes or channels | 1 |
| Measuring method | Multiple-path transit-time (time-of-flight) |
| Communication interfaces | RS485, Modbus, M-BUS, USB (other interfaces possible on request) |
| I/O |
2 x 4..20mA analogue input 2 x 4..20mA analogue output 1 x Relays 2x Digital (transistor) |
| Power requirements | 90-240VAC |
| Certificates required / Acceptances | CE, ISO 9001 / ISO60041, ISO6416, ASME PTC 18 |
| Path lengths | 0,1..150m |
